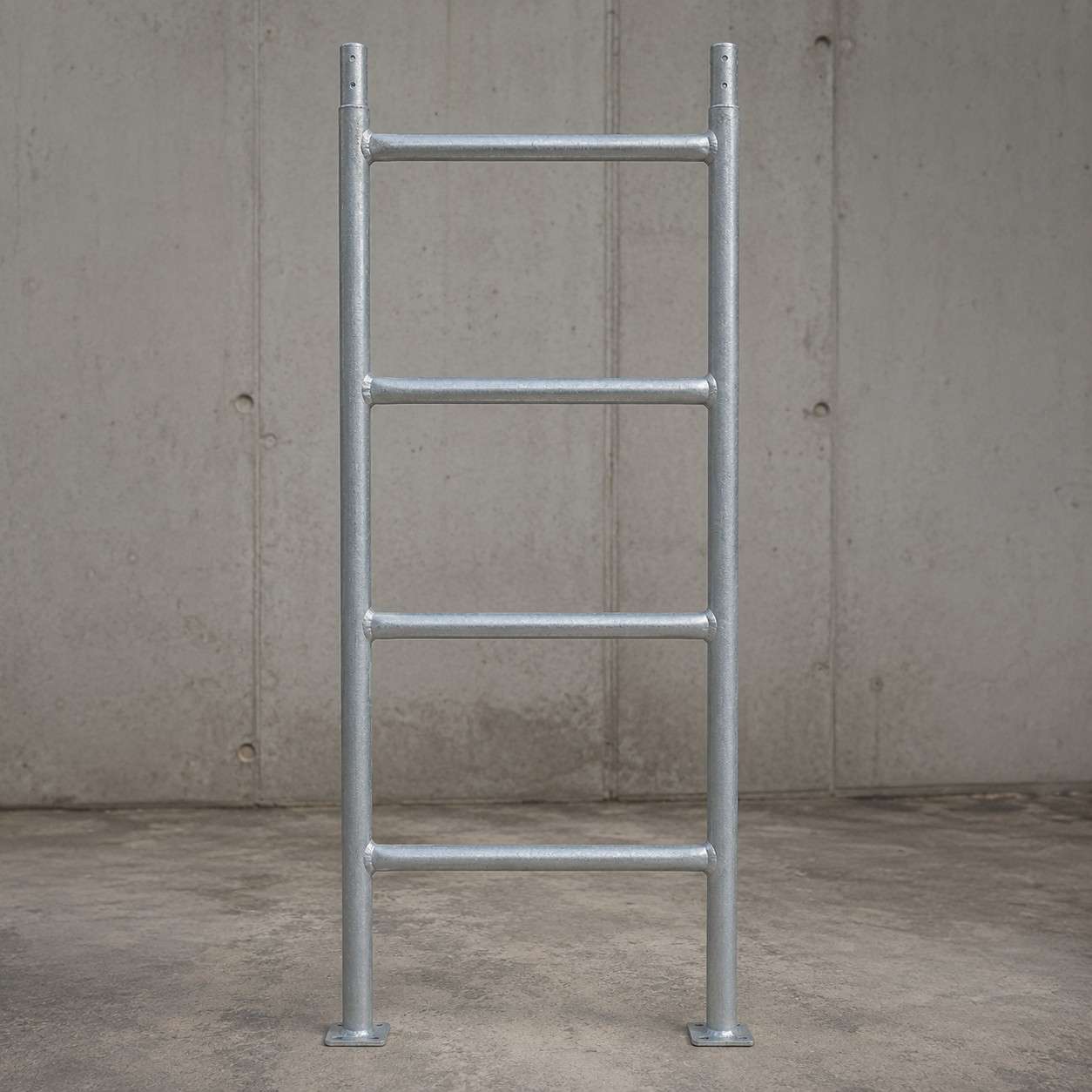

Vertical Frame

Original price was: 30.00৳ .Current price is: 28.00৳ .

A Vertical Frame is a main load-bearing component used in frame scaffolding systems to create the upright structure of the scaffold. It consists of two vertical steel tubes connected by horizontal cross members, providing strength, stability, and convenient climbing access. The frames can be stacked and connected with cross braces to build scaffolding at different heights. Manufactured from durable galvanized steel, vertical frames are suitable for building construction, plastering, painting, maintenance, façade work, and general access applications.

SKU: 303

Specification of Vertical Frame

Description: Main Upright Frame for Frame Scaffolding
Material: High-Strength Mild Steel
Shape: Welded Tubular Ladder Frame
Tube Diameter: 42mm–48.3mm
Tube Thickness: 2.0mm–3.2mm
Standard Height: 1700mm–2000mm or Customized
Standard Width: 900mm–1250mm or Customized
Surface Treatment: Hot-Dip Galvanized, Pre-Galvanized or Painted
Connection: Spigot and Lock-Pin System
Function: Provides Vertical Support and Climbing Access
Application: Construction, Painting, Plastering and Maintenance
Color: Silver Galvanized or Customized
